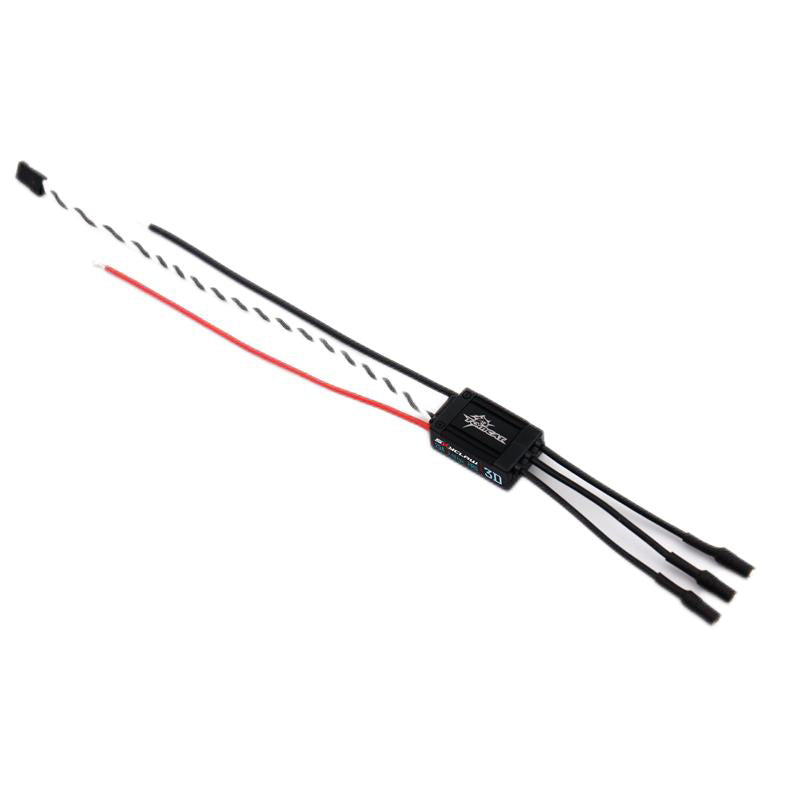

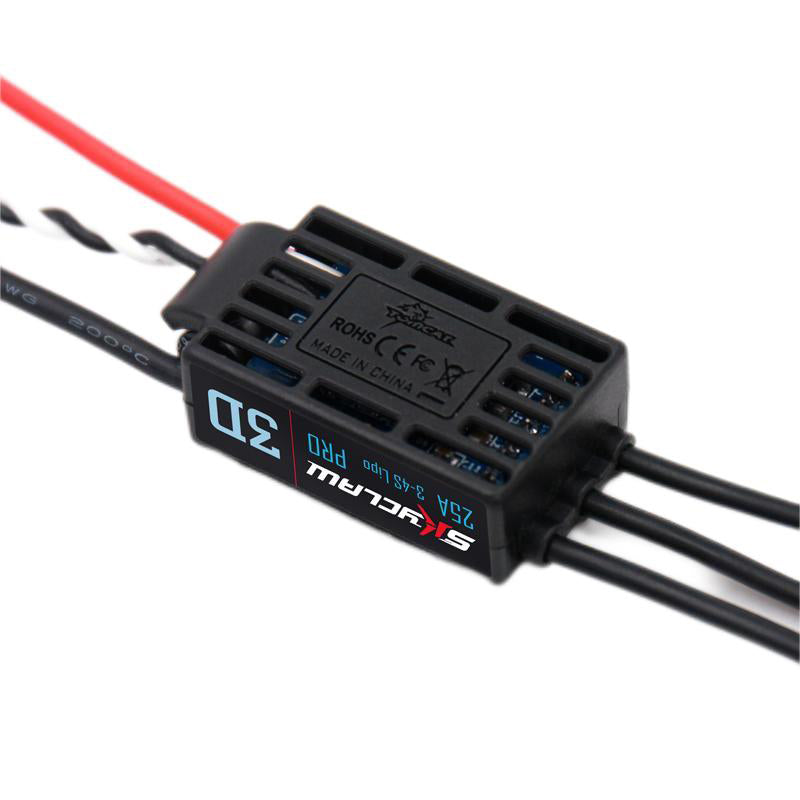

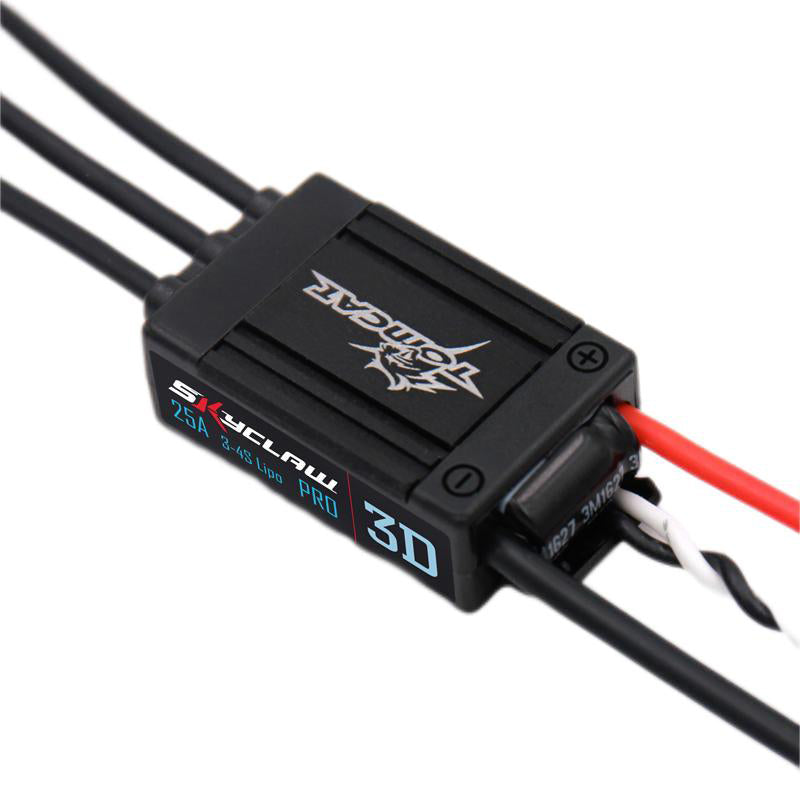

TomCat Skyclaw Pro 25A 3D ESC 3-4S Lipo for Multi-Rotor

Adopt high-frequency MCU (up to 50MHz) as the main control chip, the computing speed of the ESC is faster, and the response speed of the throttle is dramatically improved.

The ESC can rapidly switch the motor rotation to achieve forward and reverse 3D flight functions.

Applying advanced synchronous rectifier technology can increase the ESC efficiency (significantly reduce the ESC temperature), improve the throttle linearity, and speed up the response when decelerating the motor.

Highly intelligent and adaptive default settings like auto-adjusting timing meet almost all applications. No need to set any parameters and calibrate the throttle range. It is quite easy to use.

The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes the flight more stable.

Cont. Current: 25A
Burst current (10s): 40A
BEC: None
Li-Po: 3-4s
Weight: 25g
Size (L*W*H): 46.6x22.2x10.5mm
Applications: 330-400mm class 3d multi-rotors
