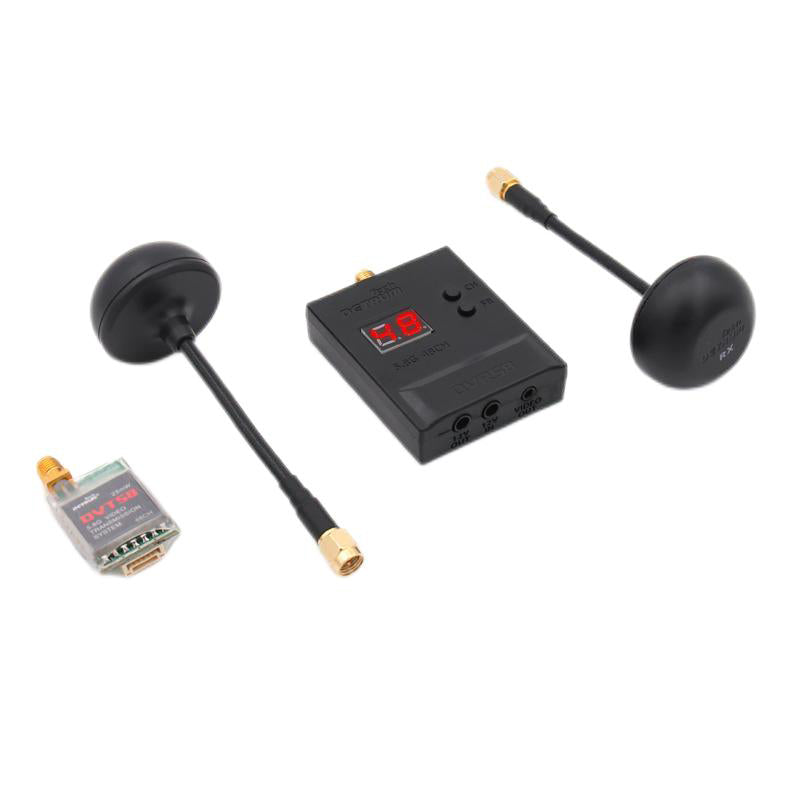

Detrum 5.8G 25mW 400m 48CH FPV Video Transmission (Tx & Rx)

DVT58 25mW

48 channels adjustable, the channel number can be displayed on the LED digital display.
Single button and single LED digital display, super small size, lightweight, portable for the aircraft.

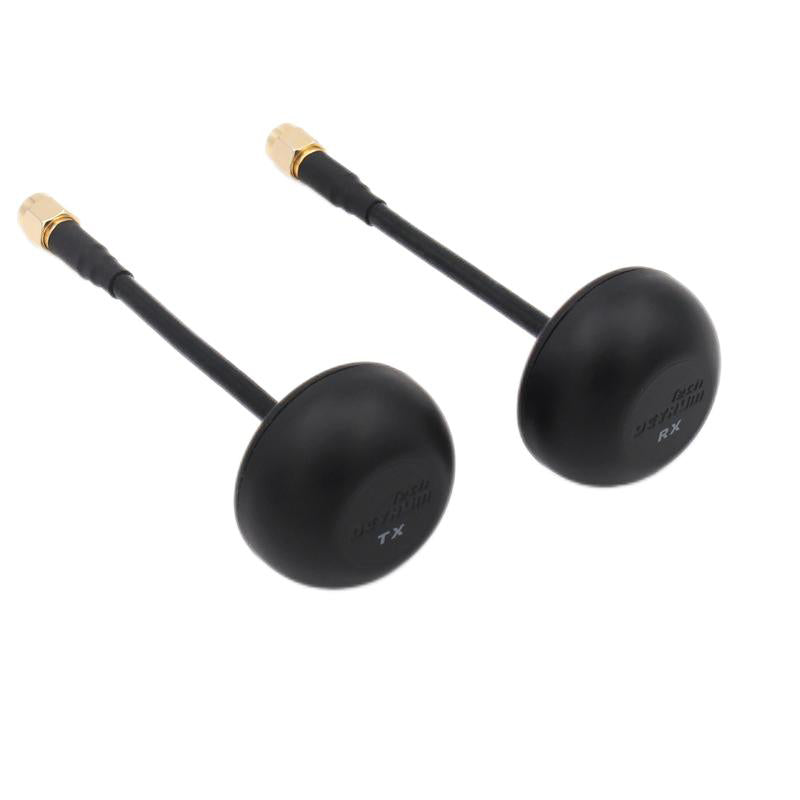

Adopt an omnidirectional mushroom antenna to transmit the signals.
Integrated wires and plugs, easy to install.
Multiple receivers can be linked simultaneously, making it possible for everyone to hold a display to watch the video separately.

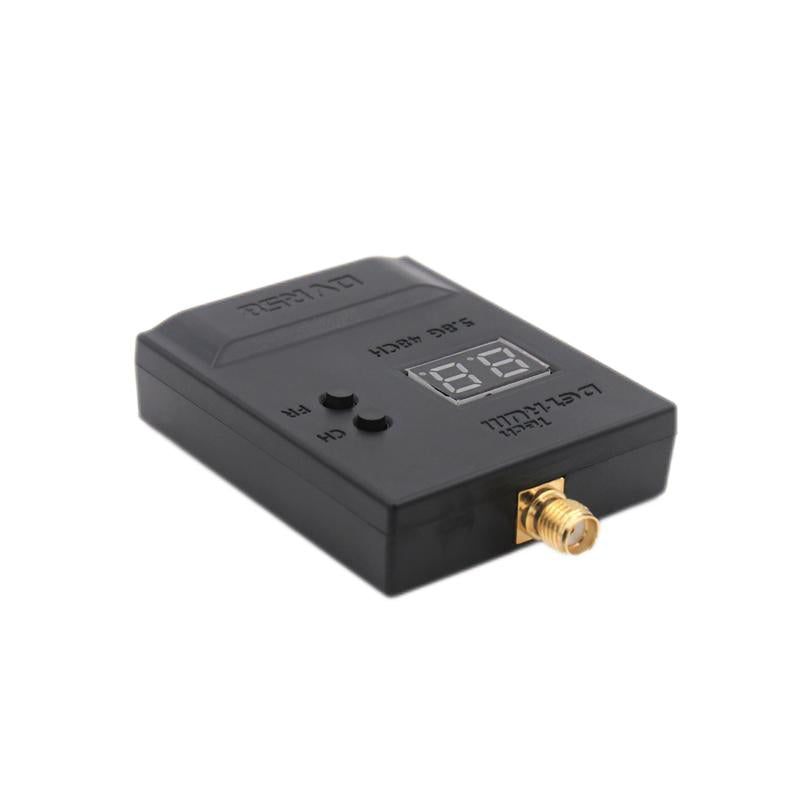

DVR58

48 channels adjustable, the channel number can be displayed on the LED digital display.
DVR58 has a 12V/1A output interface, providing a stable voltage for the display.

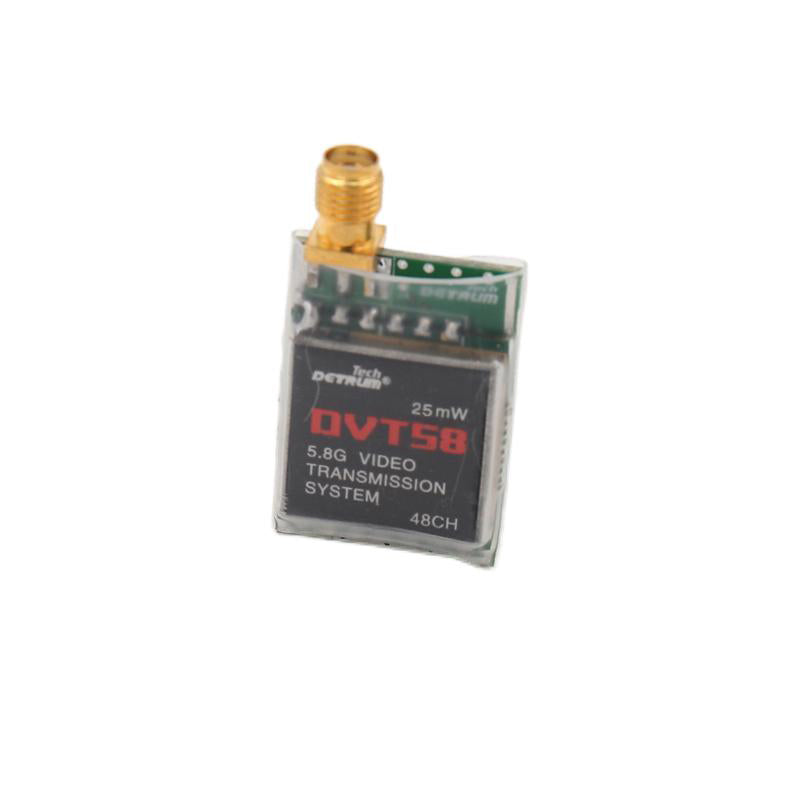

DVT58 25mW Transmitter

Working Frequency: 5.8GHz ISM
Output Power: 25mW Channel: 48 CH
Input Voltage: DC 7V~17V
Supply Current: 160mA/12V
Antenna Connector: 50Ω SMA
Antenna Gain: 2dBi
Video Input Impedance: 75Ω
Video Band Width: 8MHz
Video Format: NTSC/PAL
Working Temperature: -40~85℃
Dimension (L*W*H): 32*21*9mm
Weight: 10g (without antenna)


DVR58 Receiver

Working Frequency: 5.8GHz ISM
Channel: 48 CH
Input Voltage: DC 7V~17V
Supply Current: 80mA/12V
Output Voltage: 12V
Antenna Connector: 50Ω SMA
Antenna Gain: 2dBi
Video Output Impedance: 75Ω
Working Temperature: -40~85℃
Dimension (L*W*H): 62.8×45×14.5mm
Weight: 28g (without antenna)

DVT58 25mW include:

DVT58 25mW x1
Mushroom Antenna (Tx) x1
4-pin connector to DuPout connector and JST connector Cable x1

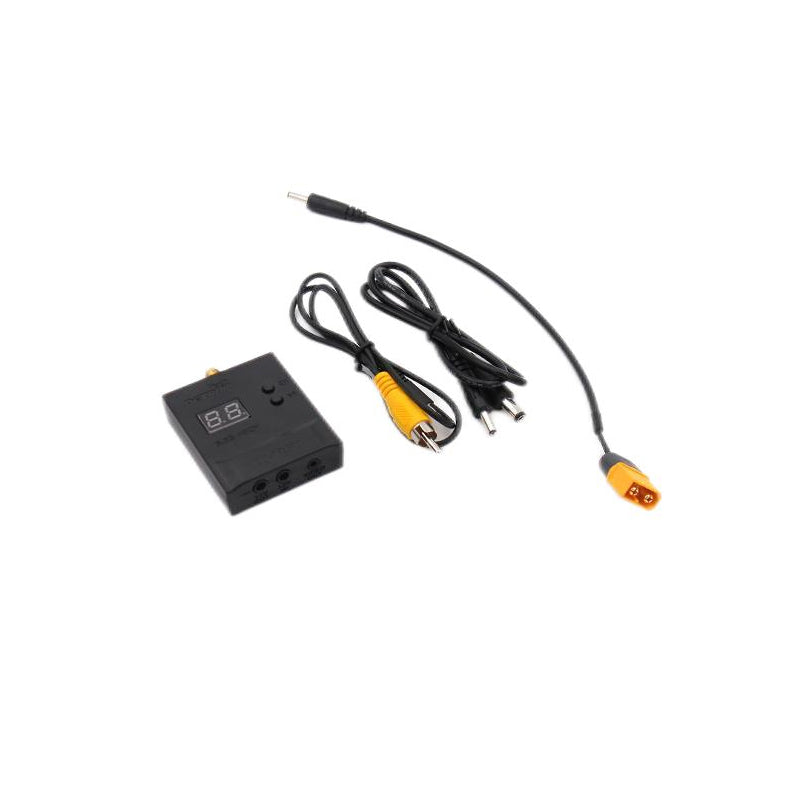

DVR58 include:

DVR58 x1
Mushroom Antenna (Rx) x1
DC3.5mm to DC5mm Cable x1
DC3.5mm to XT60 Cable x1
3.5mm Stereo Plug to RCA Plug Cable x1
