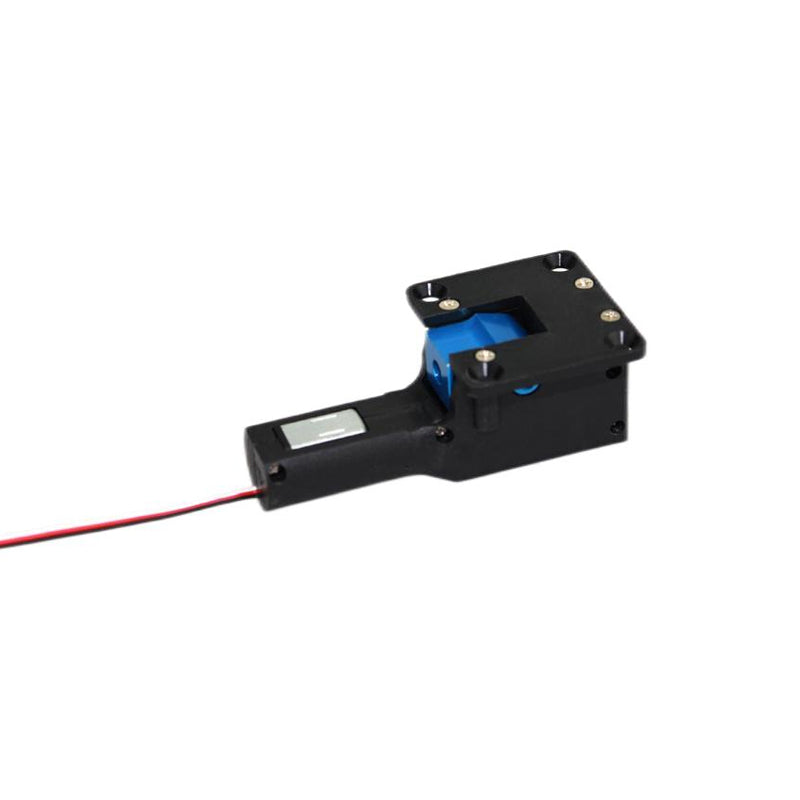

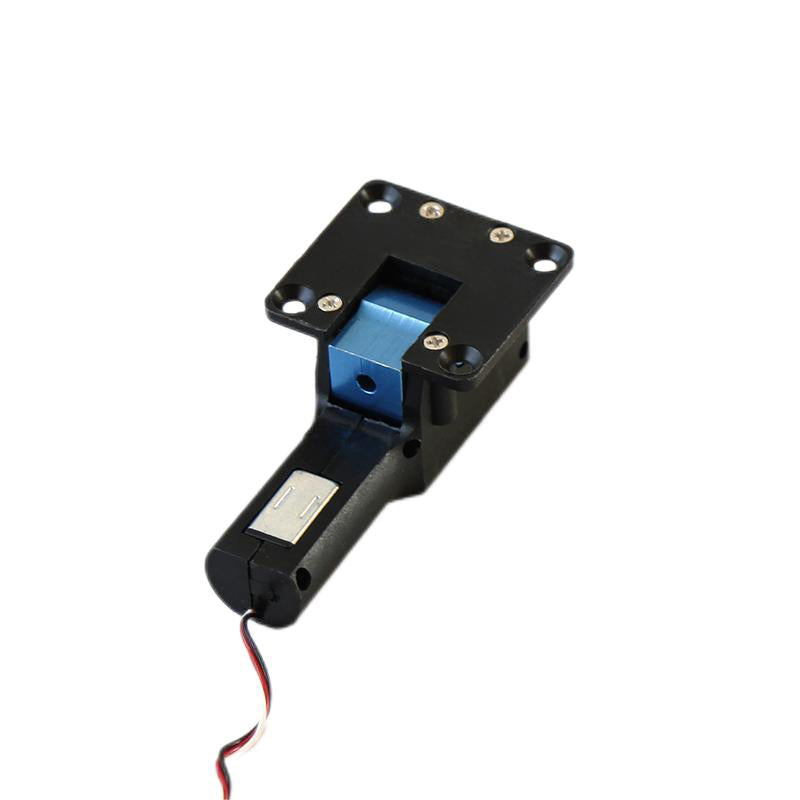

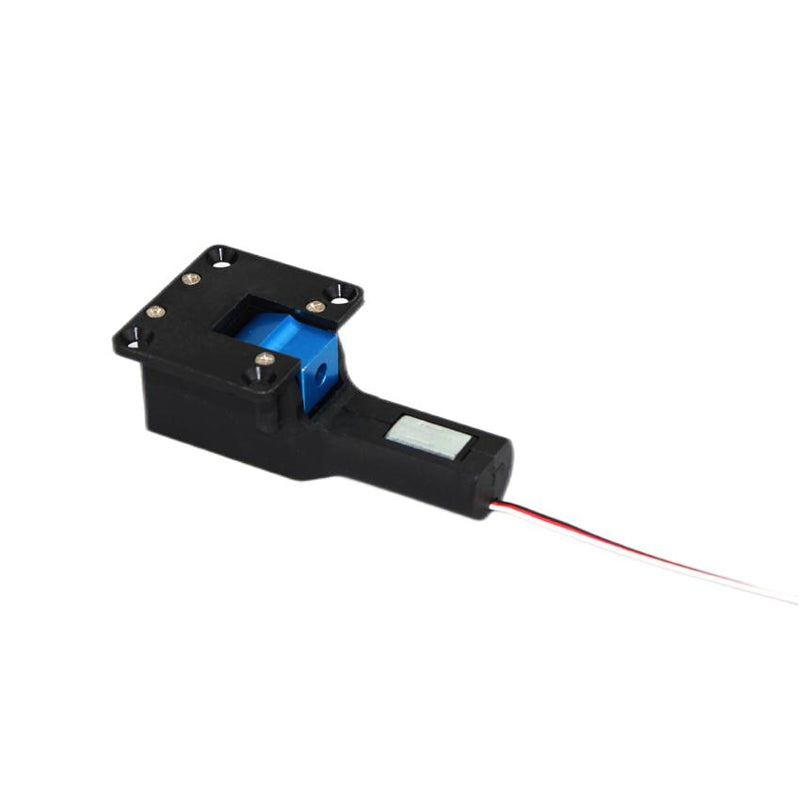

Dynam 3.0mm Dia 90 Degree Metal E-Retract V2

Dynam 3.0mm Dia 90 Degree Porous Metal E-Retract V2 - DY-1148

Features

• Robust landing gear strut and mounting bracket.

• Integrated electric motor with a micro PCB.

• Built-in overcurrent protection.

• For aircraft weight: 1-4.0 kg.

Specifications

Speed: 1.25sec @4.8v, 1.00sec @6.0v, 0.8sec @7.4v
Weight: 39.5g
Torque: 3.5kg.cm
Motor type: electric brushed
Gear: metal
Current draw idle: 5mA
Current draw stall: 200mA
Voltage: 4.8v-7.4v
Retract degree: 90°
Hole diameter: Ø3.0mm
